HYDRAULIC GUILLOTINE SHEAR GHB SERIES 8

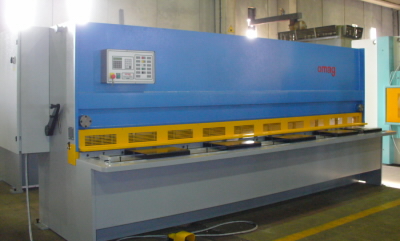

Hydraulic shear omag mod. GHB 408

[click on photo to zoom]
Standard equipment :

- Manual blade gap adjustment
- Cutting angle adjustment with 5 push-buttons on control panel
- Numerical Control with relevant hardware and software. High reliability. 1 axis directly controlled with A.C. driver. Programming in manual or automatic modes. LCD alfa-numeric display. Mono-functions push-buttons. Designed and built in our workshop.
- 2 speeds motorized back gauge, stroke 700 mm speed 10-33 mm/sec
- Set of blades suitable for cutting mild steel
- Millimetre squaring arm and 2/3  extensions, mm 1000 long
- Crooked sheet holder
- First filling oil
- Mobile foot pedal
- Safety device according to CE rules ( for UE countries only )
-  Optional
Model

GHB 308/10
GHB 408
GHB 608
Maximum cutting thickness
mm
10
8
8
Cutting length
mm
3050
4100
6200
Distance between housings
mm
3340
4390
6540
Minimum cutting angle
°
30'
30'
30'
Maximum cutting angle
°
3°
2°30'
2°30'
Strokes pro min.
nr
31 - 9
26 - 9
21 - 6
Main motor capacity
kW
15
15
15
Back gauge motor power
kW
0,55
0,55
1
Back gauge adjustment (standard)
mm
700
700
700
Throat depth
mm
---
500
---
500
---
Weight (approx.)
(Throat depth 500)
kg
7.900
9.000
10.000
11.500
23.700
Length
mm
3.800
4.800
7.000
Height
mm
1.950
2.000
2.100
Width
(Throat depth 500)
mm
2.150
2.350
2.250
2.500
2.250
